How to open a RIC hearing aid

6 replies302 viewsLast reply

Link to this topic
Reply
Edited

I’ve a pair of older Widex , complete with receivers, that I’d like to sell. In 2022 there was a problem with one of the battery contact tabs in the right HA, which became deformed. As a result, the right HA stopped working even though the battery was properly inserted. I vaguely remember that my audiologist fixed the issue by opening the HA in front of me and straightening the contact tab. After that, the device started working again. He didn’t charge me for the repair, but he did mention that I had been lucky, because having this type of repair done in the lab would normally be somewhat expensive.
Now I’ve taken them out again. The left HA works perfectly, and I’ve also tested all the receivers with it, so I know they are functioning correctly. The problem is that the right unit still doesn’t power on (receivers are mute), and I’d like to open it to see whether I can straighten the bent battery contact tab, just like that audiologist did in 2022. I’m no longer seeing that audiologist. I don’t think it would make much sense to send the HA to a lab for repair, because the cost would likely cancel out any profit from selling the pair.
Does anyone here know how to open the shell of a Widex RIC HA or, even better, can you recommend any teardown videos online? I’ve searched on YouTube but haven’t been able to find anything useful so far.

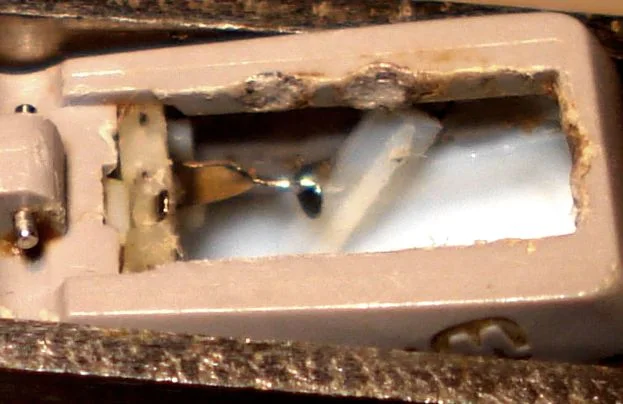

protesi dx contatto aletta batteria danneggiato DSC01575_2

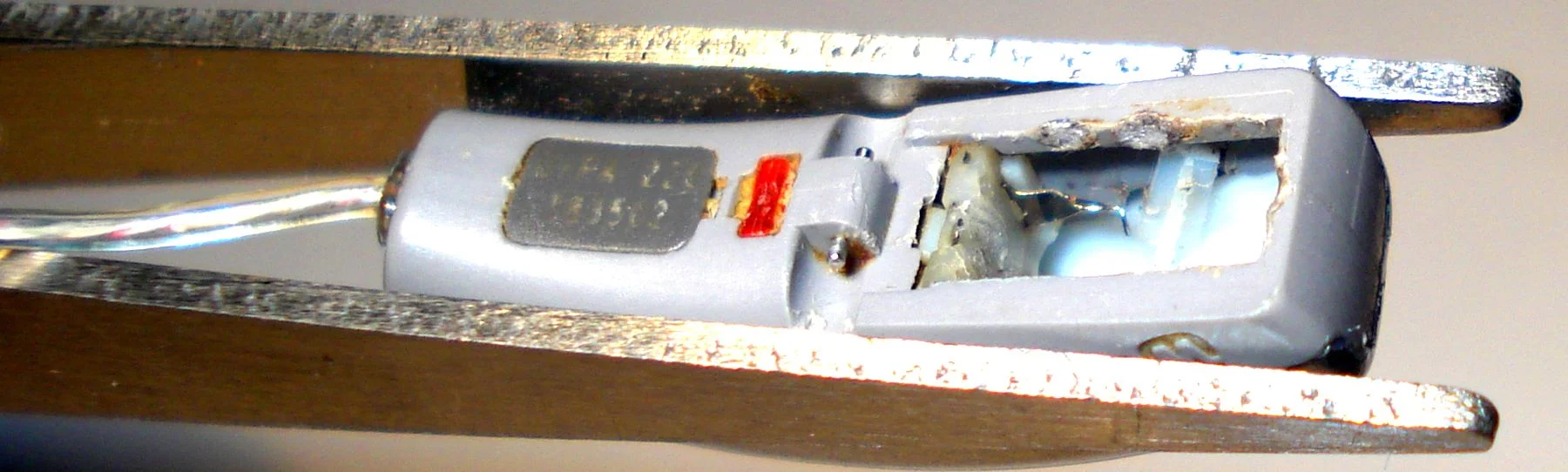

protesi dx contatto aletta batteria danneggiato DSC01578_2

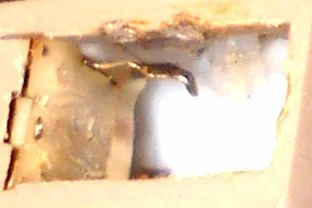

protesi dx contatto aletta batteria danneggiato DSC01577_2

3 people in this conversation2 min readJump to latest
Edited

Is that the evoke model, but it’s just a pins holding together? Yeah I have to say that I would not be happy buying this even if you get it working, it’s clearly damaged so do the right thing and order the new housing from Widex through an audiologist clinic, I do remember some time ago there was an eBay seller that sold these, check out and see what’s available, even consider getting another used one on eBay and swap the chassis over?

Here is a pair Evoke for parts for $75 (seller is accepting best offer) . I’m not sure if this is cheaper than ordering the housing

widex 440 | eBay5

Do not know the functionality of the hearing aids. one hearing aid the wire is very loose on. you can hear them when a battery is inserted but again i dont know the functionality. Note: both hearing aids are for the right ear.

If no pins then it’ll just “clip” together, they look really small form factor! But you could try pulling the microphone cover off as well, as you have the battery door off already see if you can pull/pry it apart?
