Resound Phone Clip Rechargeable Replacement Battery

I am replying to this just to provide information about the battery. I am interested for a different reason. It makes a difference in a device on how much to keep it charged depending on whether a battery is Li-ion (or Li-polymer) vs. NiMH. Li-ion batteries survive storage better at 40% to 50% charged. NiMH are best kept fully charged. Unlike Li-ion, they degrade faster if they sit around at a low % charged. NiMH batteries are also somewhat less susceptible than Li-ion/Li-polymer to elevated temperatures, AFAIK.

Also, I wanted to know the capacity in mAh of the Phone Clip+ battery. The Phone Clip+ device has no battery % charge indicator but if one knows the capacity of the battery, using a USB digital multimeter when one charges it, one can record how many mAh one input in charging and get an approximate idea of how much it’s been charged up-useful if nothing else for partial quick charges.

So I looked up the FCC documents of the Phone Clip+. It was reviewed and approved by the FCC in 2012. It’s FCC ID is X26BTB-2.

The following is the main page of the FCC review materials: https://fccid.io/X26BTB-251

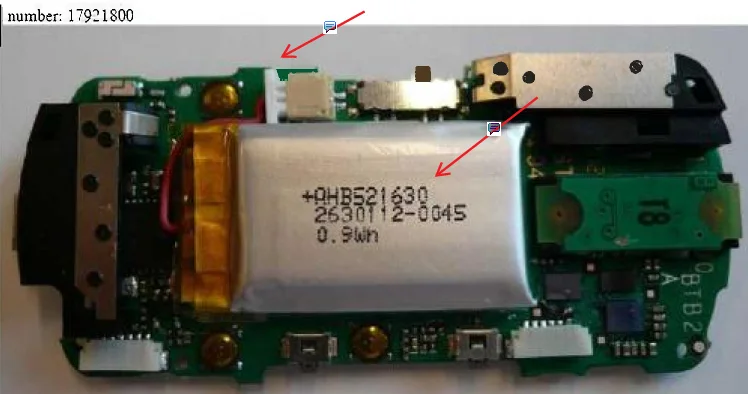

Amongst the documents are internal teardown pictures and the first shows the Phone Clip+ battery: https://fccid.io/X26BTB-2/Internal-Photos/09-BTB-2-IntPho-182181776

In my screen capture, the first red arrow points to the battery clip plug, the second red arrow to the apparent battery type ID:

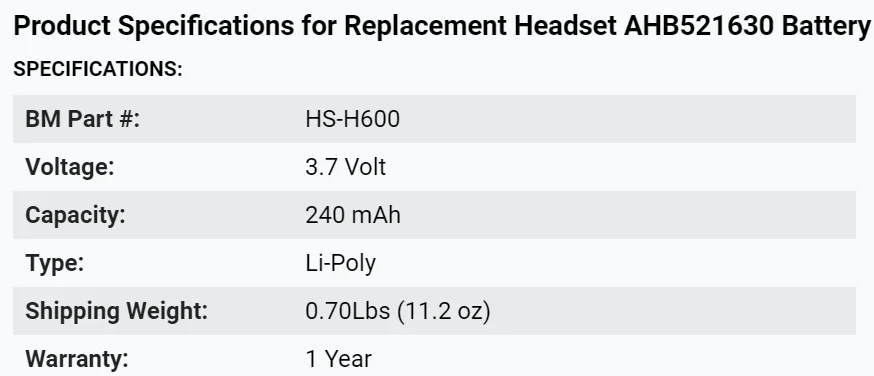

The following page came up on a search for “battery AHB521630” https://www.batterymart.com/p-hs-h600-ahb521630-battery.html120

-which answers my questions, potentially, about what sort of battery is in the Phone Clip+ and what sort of capacity it has. One can also figure that the battery is likely to be a Li-ion type as the Phone Clip+ and the Multi Mic use the exact same charger and cable as the ReSound Quattro charging case, which is clearly recognized as being Li-ion based, and the operating temperatures ranges for use, storage, charging and well as the advisements on improper use possibly causing fire or explosions for the Phone Clip+ and Multi Mic are typical for Li-ion devices.

Unlike the Phone Clip+, where the FCC documents show the battery cleanly removed from the device and connected via an apparent plug, the similar-sized Li-ion battery in the Multi Mic (FCC ID X26SM-2P) appears to be soldered to the circuit board and not as easily replaceable: https://fccid.io/X26SM-2P/Internal-Photos/Internal-Photos-288176331. Amusingly, ReSound refers to the device in the documents submitted to the FCC as “spouse mic” - see label just above 1st photo on left in link given.

Interesting if you compare the FCC internal photos of each device with the battery removed (the 2nd photo in sequence for each device’s internal photos), you can see from the residue on the circuit board that the Phone Clip+ was apparently glued in place whereas the Multi Mic battery might be resting right next to board components and held in place only by a tight fit into the outer case???

A search on the apparent Multi Mic battery ID of AHB451730 turns up nothing on the Internet.

Edit_Update: Er, … I was using Bing Search. When I switch to Google Search, I found the following Taiwanese Company that details the specs on quite a few “AHB…” battery types. Advanced Hybrid Batteries(AHB)® - Synergy ScienTech Corp.34

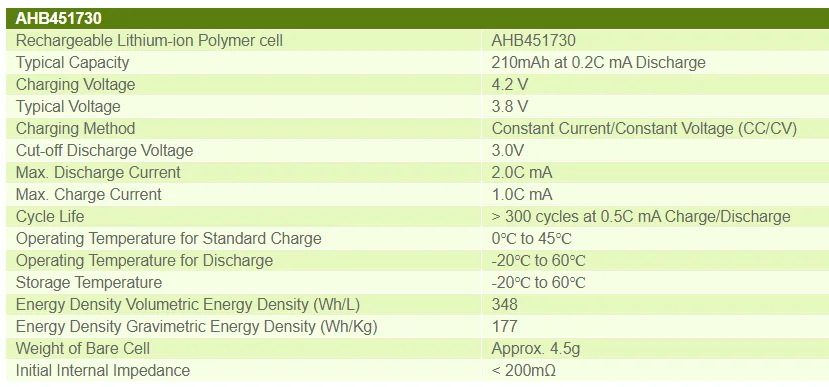

If one searches down the page, one can find detailed specs on the AHB451730 battery type:

Now where one could purchase such a battery as an individual is a different matter …
